Electrosteel Castings Limited is one of the premier Ductile Iron (DI) Fittings Manufacturers in India. The DI Fittings are manufactured in two plants, at Khardah and Haldia (in West Bengal) - where the fittings are made with the most modern casting techniques like Vacuum Lost Foam Process (VLFP), High pressure Moulding Process and 'No bake' Moulding Process. Both these plants are equipped with latest machineries, sophisticated finishing facilities and modern testing laboratories. Since Electrosteel manufactures both Ductile Iron Pipes and Fittings, it is a one stop shop for your pipeline requirement, offering excellent compatibility between pipes and fittings.
Quality as per International benchmarks.
Product certified by leading international certifying agencies like KITEMARK (UK), DVGW (Germany), ACS (France) etc.
Most modern casting techniques resulting in good quality casting.
High dimensional accuracy leading to proper fitment.
Varied options for coating and lining depending on external and internal conditions.
Proven pre-sales and after-sales support.
.webp)
Electrosteel produces fittings in the range DN 80mm-DN1200mm in accordance with the following standards.
ISO 2531 / EN 545 for Water
ISO 7186 / EN 598 for Sewerage
IS 9523 for Water and Sewerage
AWWA C110
.webp)

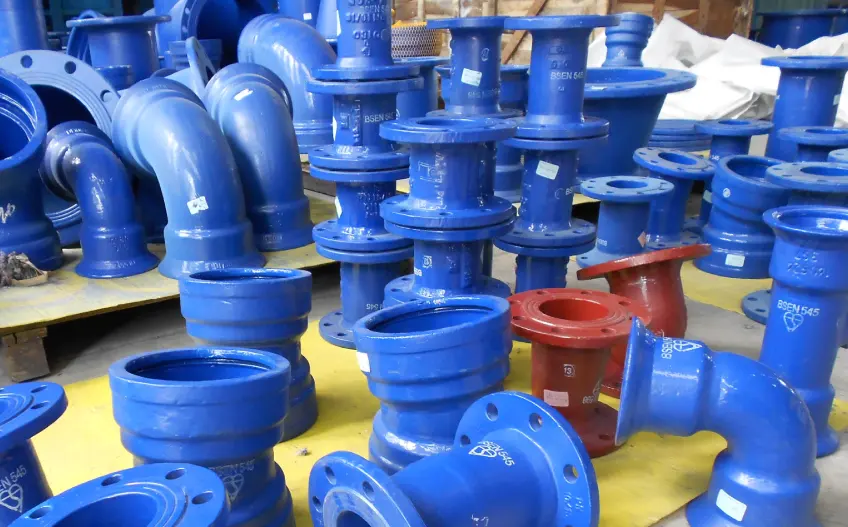

Push-on Joint Socketed Fittings

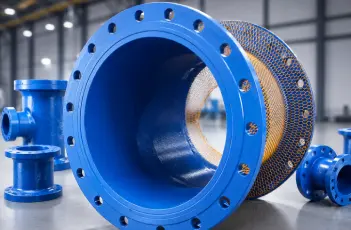

Flanged Fittings
Rotating Flange Fittings

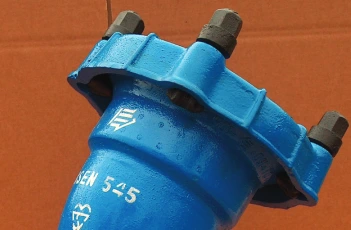

Mechanical Joint Fittings (Regular)
Mechanical Joint Fittings (Express type)
Bolted Restrained Joint Fittings
Boltless Restrained Joint Fittings (Electrolock)
.webp)
.webp)

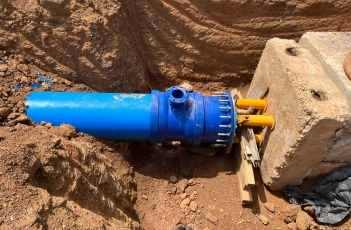

Raw and clear water transmission (pumping and gravity main)
Distribution network of potable water
Water supply for industrial/process plant application
Desalination plants
.webp)
.webp)

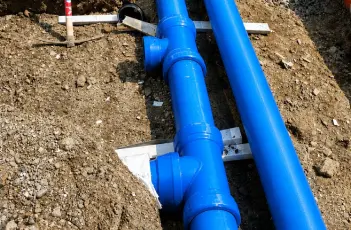

Sewerage and waste water force main
Gravity sewerage collection and disposal system
Storm water drainage piping
Effluent disposal system for domestic and industrial application
.webp)
.webp)
Piping work inside water and sewage treatment plants
Recycling system
Vertical connection to utilities and reservoirsal connection to utilities and reservoirs
.webp)
.webp)
Ash-slurry handling and disposal system
Fire-fighting systems – on-shore and off-shore
.webp)
.webp)
Piling for ground stabilization
Protective piping under major carriage-ways
Trenchless applications
Raw and clear water transmission (pumping and gravity main)
Distribution network of potable water
Water supply for industrial/process plant application
Desalination plants
| NAME OF PROTECTION | DESCRIPTION | GUIDING STANDARDS |
|---|---|---|
| Cement Mortar Lining | Fittings are supplied with manually applied Cement Lining. | ISO 4179 BS EN 545 IS 8329 |
| Ceramic Epoxy | Ceramic Epoxy lining offers a very high chemical and abrasion resistance and is normally used for waste water conveyance. DOWNLOAD | - |
| Fusion Bonded Epoxy Lining | DI Fittings with FBE coating also come with FBE Lining. | BS EN 14901 |
| Polyurethane Lining | Electrosteel offers fittings with internal Polyurethane lining for internal protection in case aggressive fluid conveyance. DOWNLOAD | BS EN 15655. |
| NAME OF PROTECTION | DESCRIPTION | GUIDING STANDARDS |
|---|---|---|
| Zinc rich paint and finishing layer of bituminous paint or liquid Epoxy | A metallic Zinc Rich paint coating (with 85% Zinc mass in dry film) is applied on the fittings surface. | ISO: 8179 (Part-2), EN 545 |
| Fusion Bonded Epoxy Coating | A state-of-the-art automated facility has been created to coat DI Fittings with powdered epoxy by fusion bonding process as per BS EN 14901. | BS EN 14901 |
| Polyurethane Coating | Electrosteel offers fittings with external Polyurethane coating for corrosion protection in highly aggressive soil. | BS EN 15189 |
| Polyethylene Sleeving | Polyethylene encasement is found to be very effective for protection of Ductile Iron Fittings. DOWNLOAD | ISO 8180/ AWWA C 105 |
