Ductile Iron Fittings - Tooth Gasket Restrained Joints
Features
- Can be used on any push-on joint socket and spigot fitting.

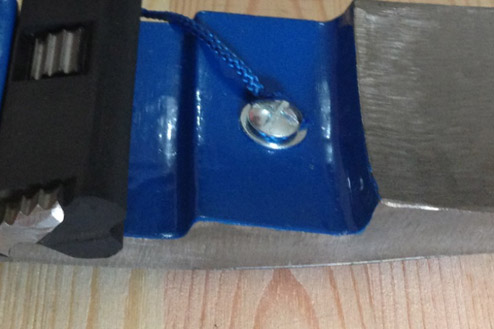

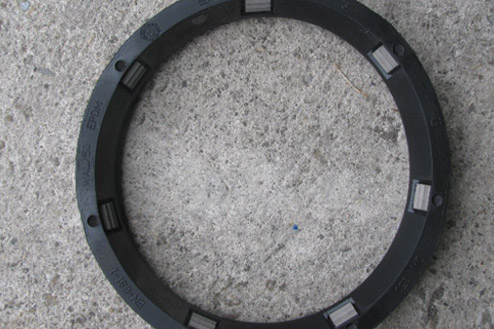

- Needs specially manufactured steel teeth inserted gasket in place of a normal gasket.

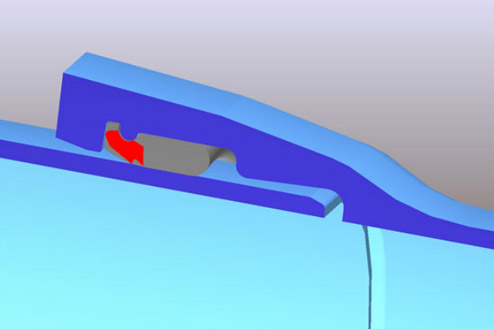

- The gasket has to be set in the socket groove like any other gasket.
- Like any other fitting, the steel teeth allow the spigot to be pushed into the socket.

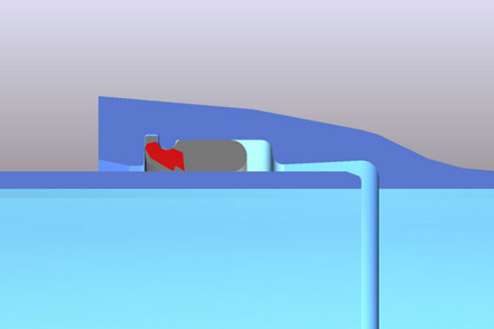

- Once the spigot is fully inserted, the teeth bite into the spigot and restrict it from coming out.
- This specially designed gasket performs the dual role of water sealing and restraining.
- After assembly, it is recommended to pull back the fitting a little bit, to ensure engagement of teeth.
| DN (mm) |
Deflection Angle (Degree) |
Class K9 or equivalent |
| PFA (bar) |
PMA (bar) |
PEA (bar) |
| 80 |
3 |
27 |
32 |
37 |
| 100 |
3 |
27 |
32 |
37 |
| 125 |
3 |
20 |
25 |
30 |
| 150 |
3 |
20 |
25 |
30 |
| 200 |
3 |
20 |
25 |
30 |
| 250 |
3 |
20 |
25 |
30 |
| 300 |
3 |
20 |
25 |
30 |
| 350 |
3 |
11 |
16 |
21 |
| 400 |
3 |
11 |
16 |
21 |
| 450 |
3 |
11 |
16 |
21 |
| 500 |
3 |
11 |
16 |
21 |
| 600 |
3 |
11 |
16 |
21 |
